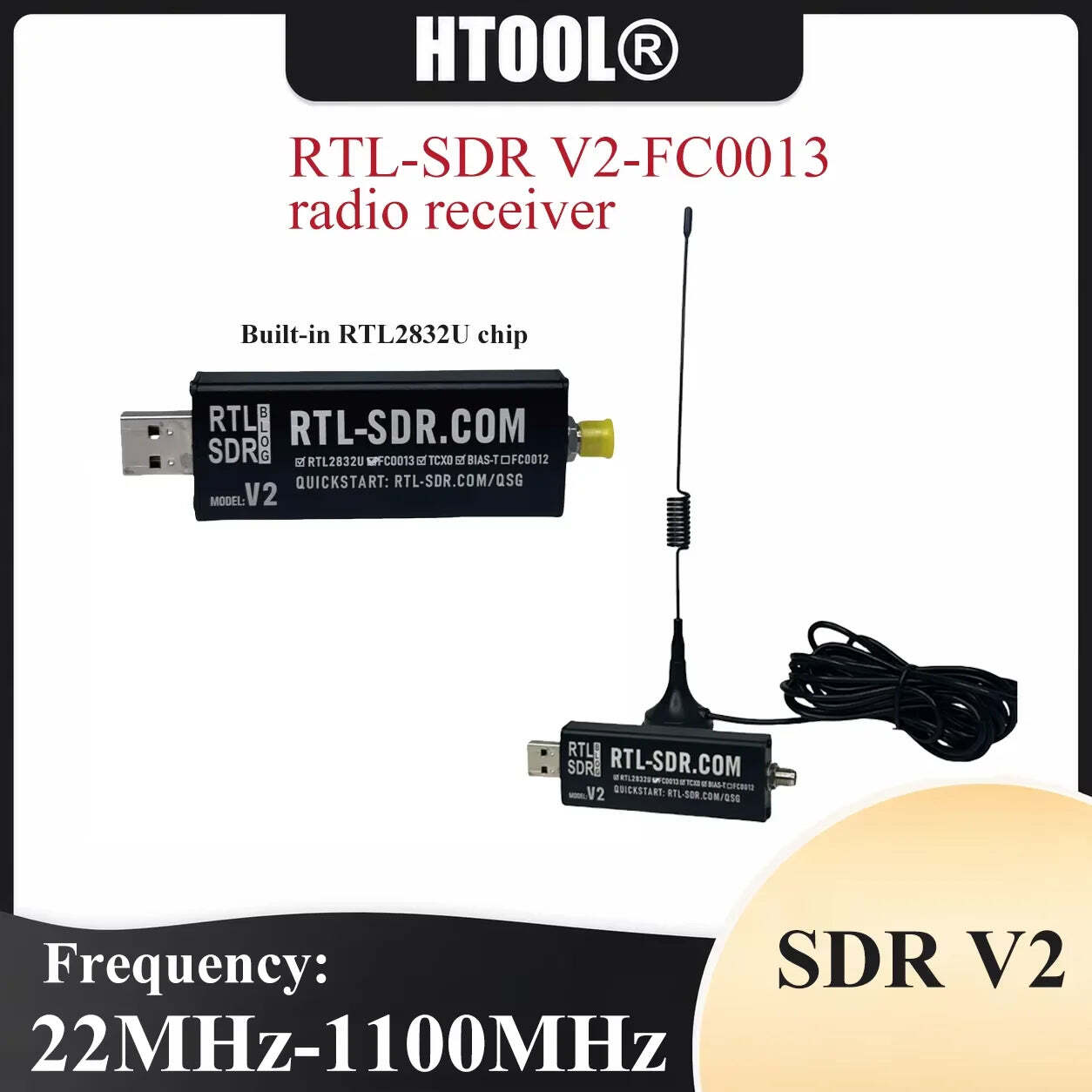

RTL SDR Radio RTL2832U RTL-SDR Chip Receiver with FC0013 Tuner Band 22-1100MHz Amateur Radio Stations

Description

SDR-V2 radio receivers are RTL-SDR receivers based on RTL2832U chips, but they are equipped with different Tuners:

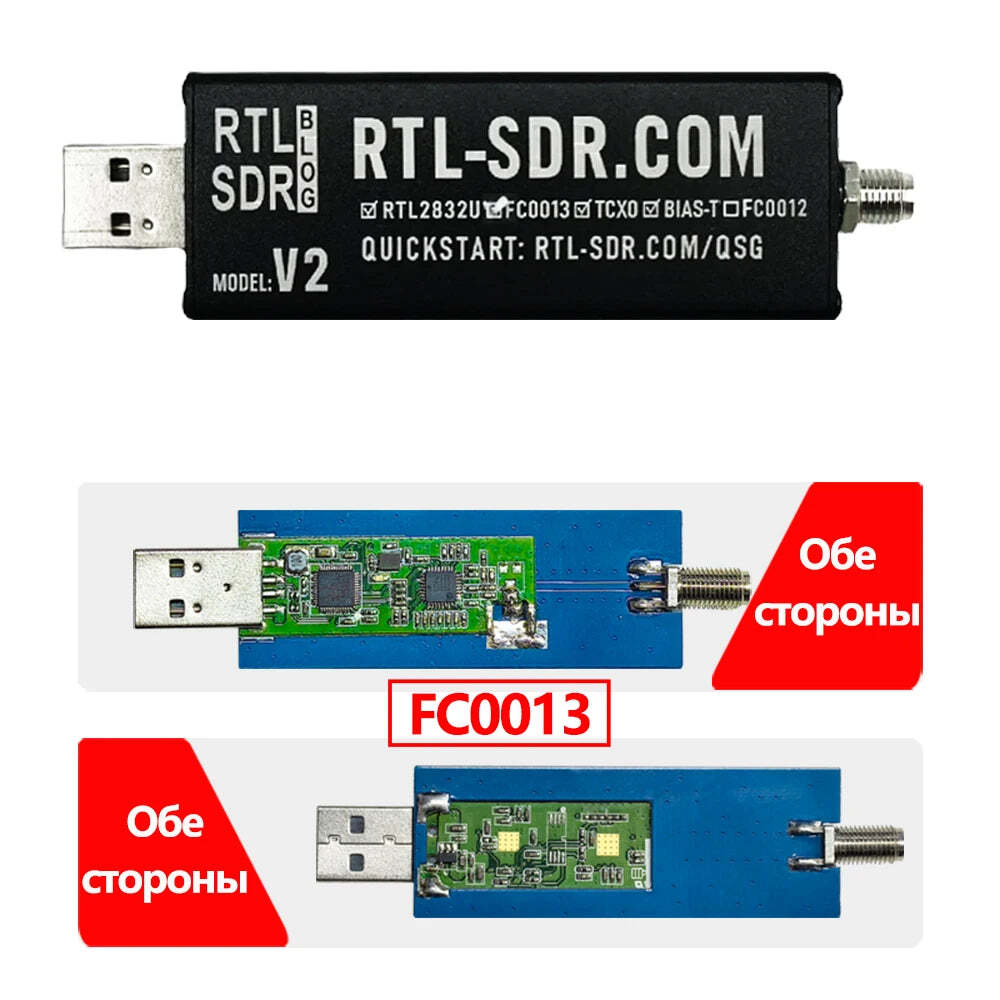

Equipped with FC0013 Tuner, the frequency band is expanded to 22-1100MHz, and supports L-band input.

Note:

1. RTL-SDR V2 cannot receive shortwaves because the RTL2832U chip of RTL-SDR itself does not directly support shortwave reception, because it lacks the direct downconversion function of the HF frequency band (below 24 MHz), so RTL-SDRV2 cannot receive shortwaves due to hardware limitations.

RTL-SDR has a rich supporting software ecosystem, covering multiple platforms such as computers, tablets, and mobile phones.

Real-time sampling rate: approximately 2.4 MS/s (million samples per second) Actual stable value may be slightly lower).

I/Q mode: supports complex sampling (orthogonal downconversion).

Resolution: ADC Bits: 8 bits (RTL2832U built-in) with limited dynamic range for entry-level applications.

Peculiarity:

1. Interface: USB 2.0: Depends on computer processing signals (may be limited by USB bandwidth).

2. Cost-effective entry-level SDR, compared with professional SDR equipment (such as HackRF, USRP), the price is low, suitable for novices to learn radio technology.

3. Compatible with mainstream SDR software (SDR#, GORX, HDSDR, CubicSDR, etc.), no additional driver required.

4. Open source ecological support, the global developer community provides rich software support, such as: SDR# (Windows platform, easy to use, GORX (Linux/macOS, supports spectrum analysis), rtl_433 (decoded 433MHz sensor signal), dump1090 (aviation ADS-B signal decoding), etc.

5. Low power consumption and portable design, USB powered, no external power supply required.

Application Scenarios:

Amateur radio & spectrum monitoring

Monitor aviation bands (1090MHZADS-B), amateur radio stations (HFNHF/UHF), FM/AM radio, etc.

Analyze the local radio environment and troubleshoot sources of interference.

Software Installation and Device Configuration:

Download SDRsharp

Visit the official SDRsharp website

airspy.com/download/, download the appropriate version according to your personal needs.
