Description

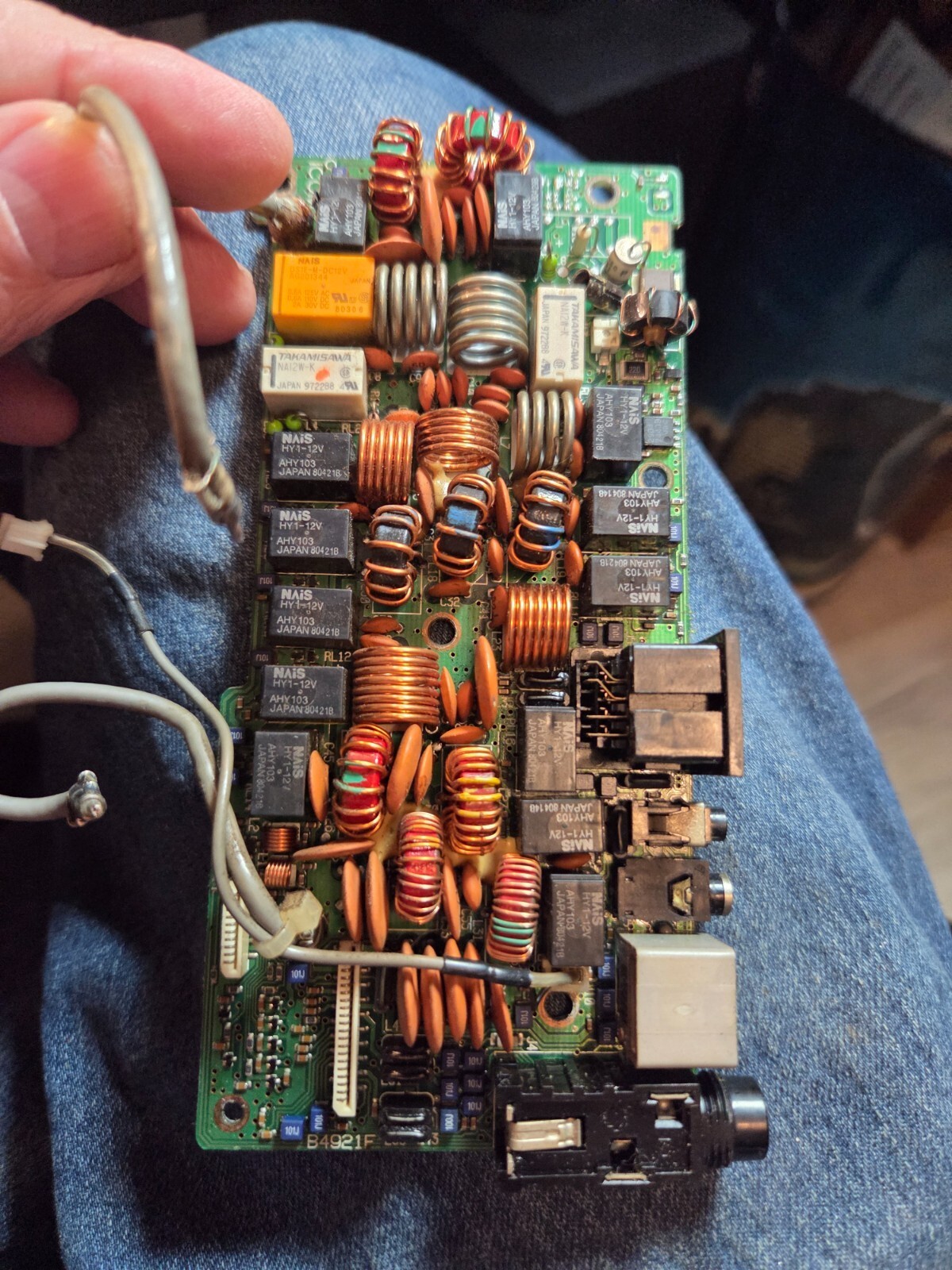

Board Features
– Coils and Toroids: Multiple copper wire-wound toroidal inductors used for filtering specific frequency bands.
– Relays: Several small black and white electromagnetic relays (labeled NAIS) used to switch different filter stages in and out of the circuit.

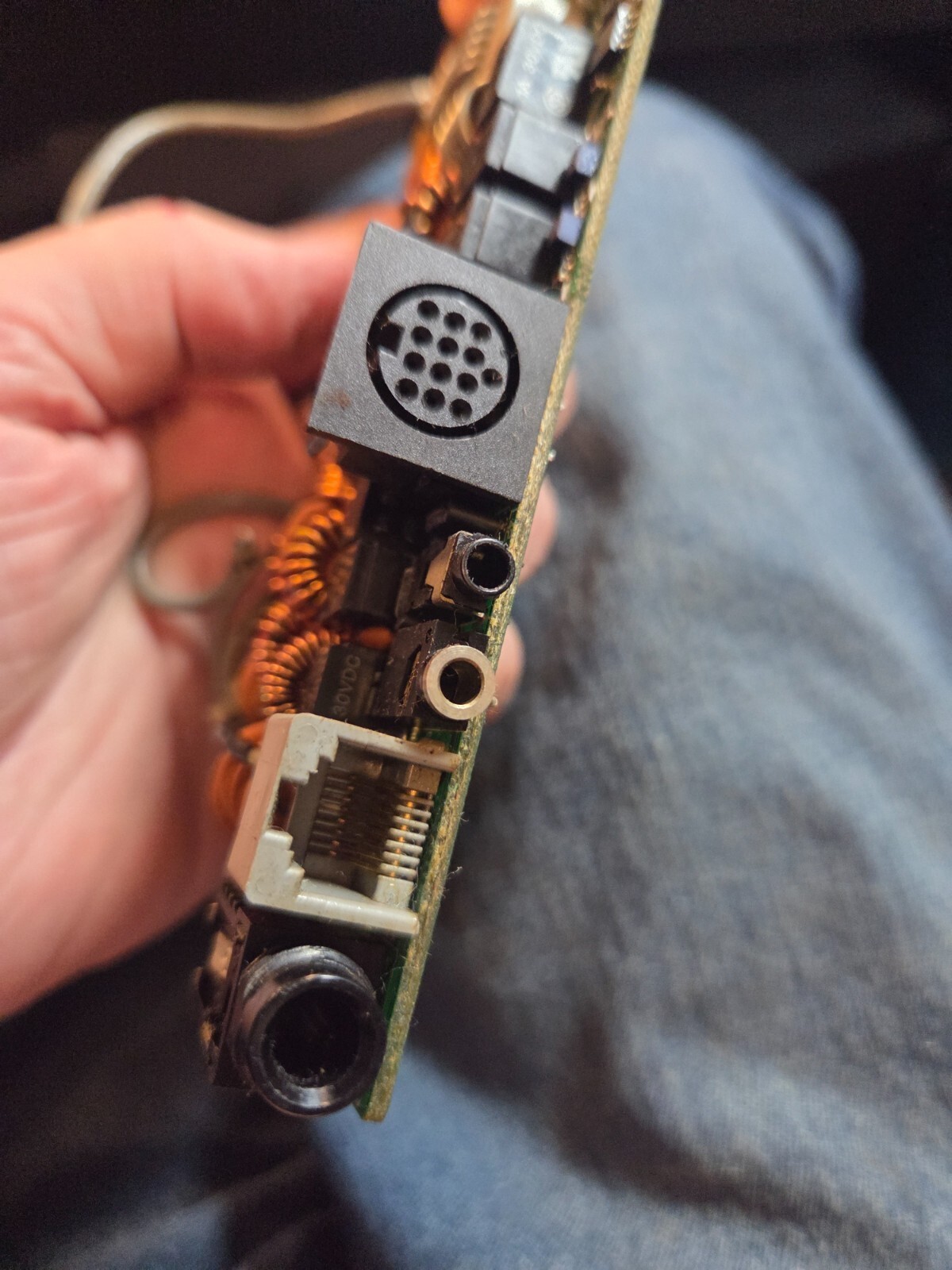

– Connectors: Includes antenna jacks, wiring harnesses, and interface plugs to connect back into the radio’s main RF amplifier stage.
If you’d like assistance, please let me know:
– What specific model of transceiver this came from
– Whether you are trying to troubleshoot a fault, test components, or find a replacement
